Stop busting your ring spanner trying to lift things the hard way! Make your life a breeze and keep the health and safety geezer happy at the same time.

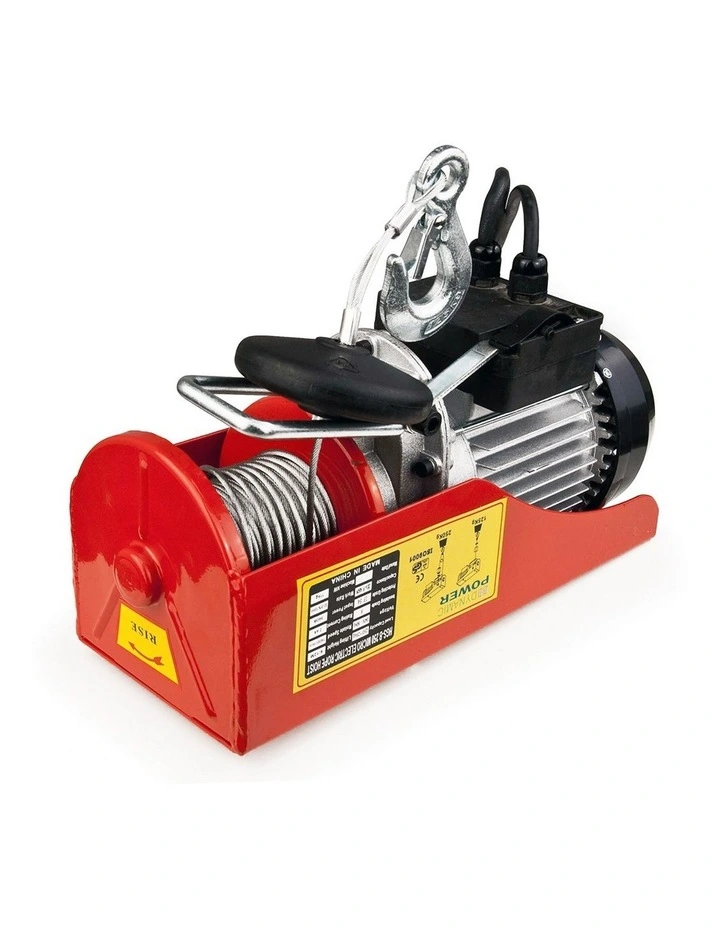

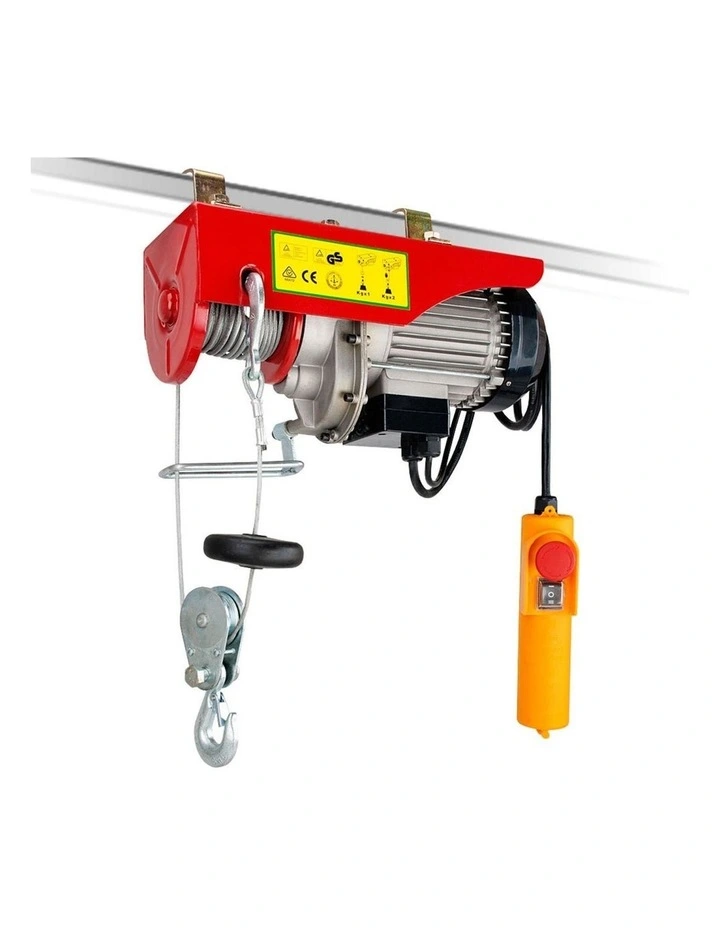

This electric winch (hoist) can be bolted to an overhead beam or engine lifter to make short work of any lifting jobs you have around the workshop.
The Electric Hoist is powered by a Lateral-Magnetic Single-Phase capacitance motor and fully featured compact lifting solution you've been looking for. Capable of reaching a maximum height of 18m, it carries a maximum load of 250kgs using a clever dual pulley and is powered by a 510W commercial cycle motor.
Note: The Electric Hoist is only suitable for vertical lifting
Features:
- Powered By Lateral-Magnetic, Single-Phase Capacitance Motor
- Single Rope Capacity 125kgs / Double Rope Capacity 250kgs used to Hoist Heavy Things
- Upwards and Downwards Control at your Fingertips
- Capable of reaching a maximum height of 18m

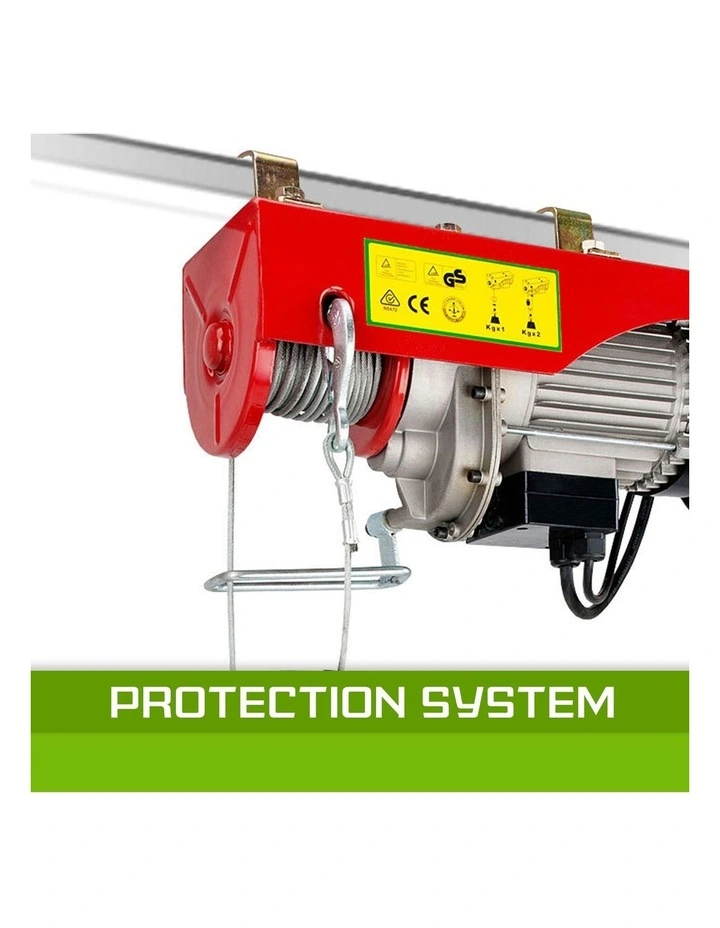

- Emergency Stop Switch, Anti-Heat Device and Limit Device to cut the power supply when the hoist is hyper-extended to ensure operational safety
- Lift-Descend-Reset and boasts an impressive lift speed of 10 meters/min when utilizing single line lift or 5 meters/min when utilizing double line lift
- Cert: CE, GS and EMC Approval
- Single Rope Capacity: 125Kg
- Double Rope Capacity: 250Kg
- Max. Spindle Stoke:Lifting Height(Single Rope): 18m
- Max. Spindle Stoke:Lifting Height(Double): 9m
- Lifting Speed(Single Rope): 10m/min
- Lifting Speed(Double Rope): 5m/min

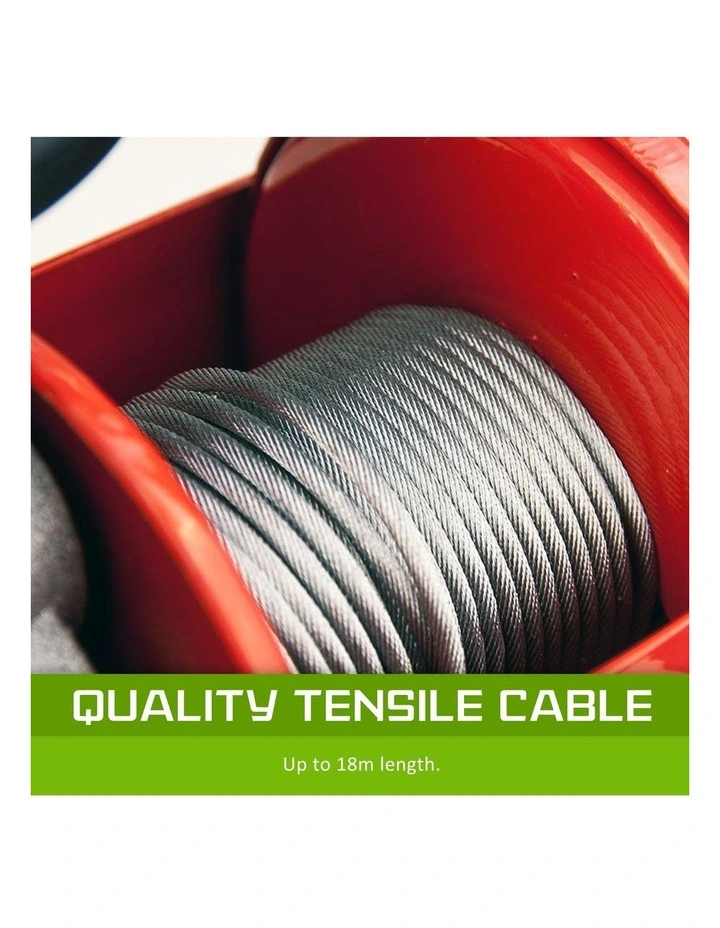

- Cable Length: 18m
- Cable Diameter: 3mm
- Switch Cable Length: 1.7m
- Resister Cable: >=800Kg
- Main Voltage: 240V/50Hz
- Motor Performance: 510W
- Service: S3 20%/10min
- Gross Weight: 12kg
Product Included:
- Hoist Unit

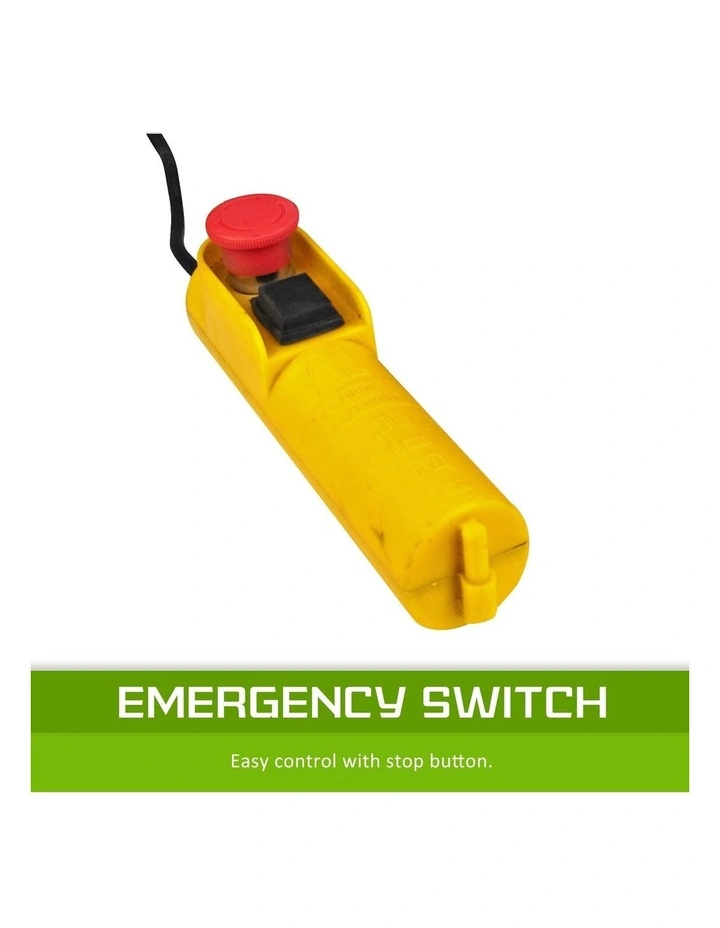

- Remote Control

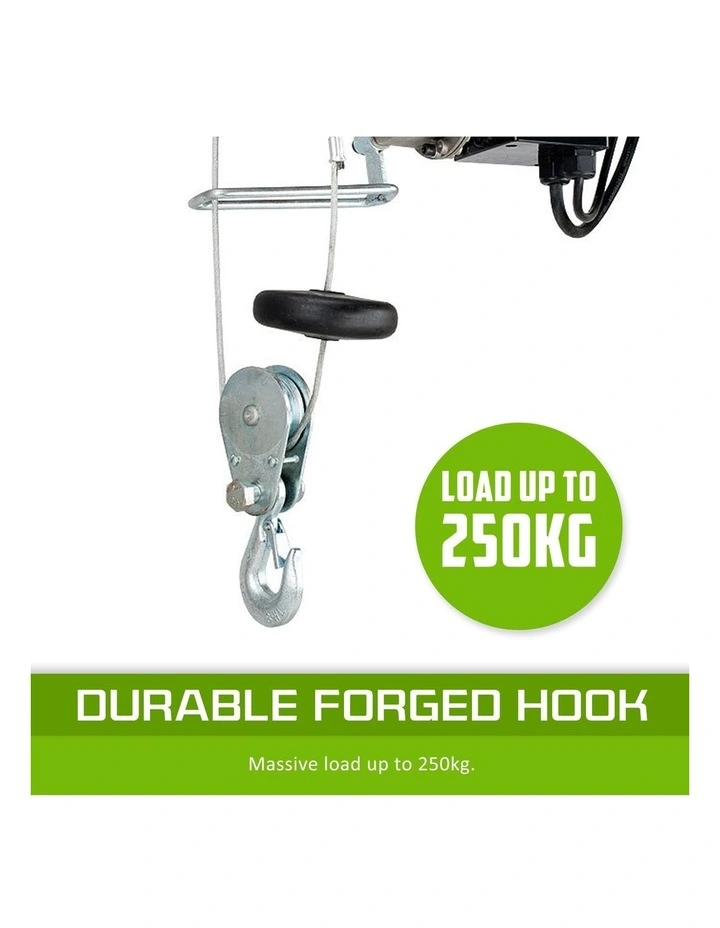

- Hook

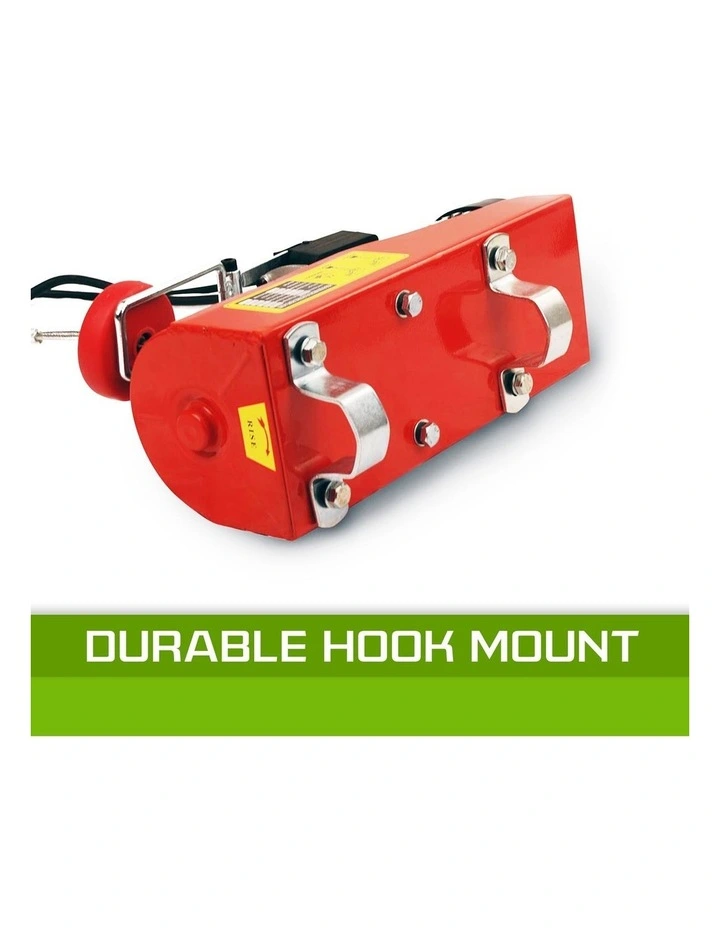

- Fixed Mount
- Screws and Washers
- Instruction Manual
